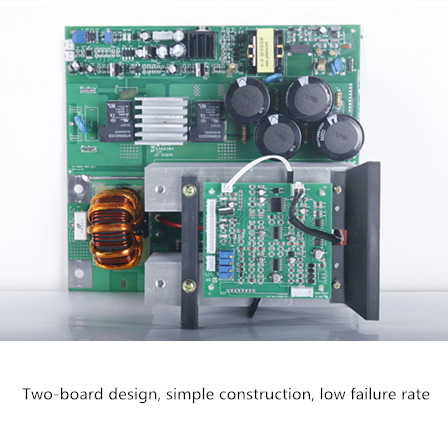

- IGBT technology, the core adopts advanced IGBT inverter device, high frequency
- With 2 input voltage auto-options: 1P 220V and 1P 380V
- Digital meter to preset and display welding current
- Anti-stick, adjustable hot striking, easy to strike the arc, stable arc welding, deep weld pool and good welding appearance.
- VRD function is optional,which is safe for welders
- Suitable for various acid and basic electrodes
- Over current, over heat and under voltage protection is available
- Energy saving-compared with the traditional SMAW machine more efficient
- Suitable for welding the carbon steel, stainless steel, low alloy steel and other metals.
| Rated input voltage (V) | 1PH AC 220 ±10% | 1PH AC 380 ±10% |
| Rated input power (KVA) | 6 | 6 |
| Rated input current (A) | 27 | 16 |
| Rated output | 26.4V/160A | 26.4V/160A |
| Output current(A) | 20-160 | 20-160 |
| No-load voltage (V) | 80±5 | 65±5 |
| Rated duty cycle 30 (%) (40°C 10min) | 160A | 160A |
| Rated duty cycle 100 (%) (40°C 10min) | 88A | 88A |
| Efficiency (%) | 70 | 70 |
| Protection class | IP21 | IP21 |
| Insulation class | F | F |
| Net weight (Kg) | 5,6 | 5.6 |
