- Support MMA, MIG, Lift TIG 3 functions

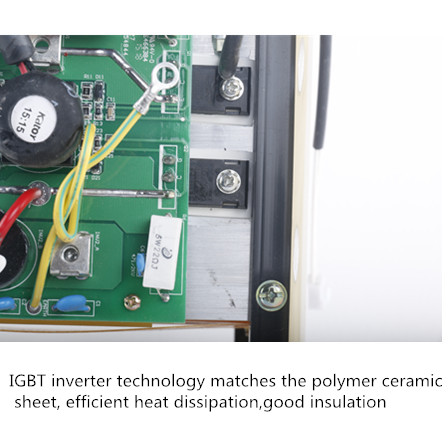

- IGBT technology, the core adopts advanced IGBT inverter device
- Suitable for welding metal plate with thickness above 0.8mm
- Inductance control for arc stability and spatter control
- Digital voltage and ampere meters
- Wire size selection, do a favor to quickly matching the welding parameter
- Over current and over voltage protections are available
- Little splashing and great penetration
- Energy saving-compared with the traditional GMAW machine and more efficient
- Widely used in electric power, steel structure, shipbuilding and other industries.
| Rated input voltage (V) | 1PH AC220±15% |
| Rated input power (KVA) | 6.9 |
| Rated input current (A) | 31 |
| Rated output | 24V/200A |
| Output current(A) | 50-200 |
| No-load voltage (V) | 54±5 |
| Rated duty cycle 40 (%) (40°C 10min) | 200A |
| Rated duty cycle 100 (%) (40°C 10min) | 127A |
| Efficiency (%) | 70 |
| Protection class | IP21 |
| Insulation class | F |
| Type of wire feeder | Built-in |
| Net weight (Kg) | 28.5 |
- MIG gun
- Earth cable with clamp x 3M
- CO2 Regulator
