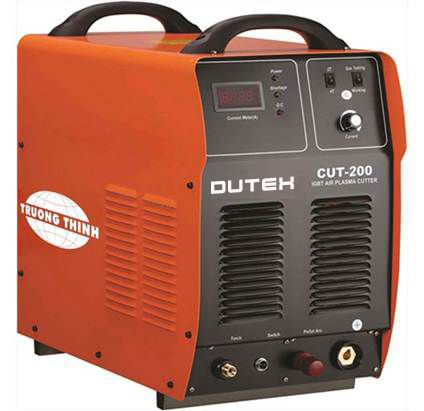

CUT-200

Brand: Keyue Sub-Cat: Plasma Cutter

PRODUCT DESCRIPTION - Adopt advanced IGBT technology of the core inverter device - Non-contact start system-smooth arc-striking with HF controlContinuous adjustment of cutting current - High duty cycle result in less power consumption - Built-in overheat protection, over voltage protection...

Contact

+84902055777

- Adopt advanced IGBT technology of the core inverter device

- Non-contact start system-smooth arc-striking with HF controlContinuous adjustment of cutting current

- High duty cycle result in less power consumption

- Built-in overheat protection, over voltage protection under voltage protection and lack of compressed air pressure protection

- Adjustable output current to satisfy the cutting demands based ‹xi different kinds of material and thickness of working plate

- Apply to vehicles, shipbuilding, boiler. chemical, food, medicine, machinery processing etc…

- Manual cutting and automatic cutting (CNC) both are available (CNC)

Rated input voltage (V)	3PH AC380±15%
Rated input power (KVA)	37,5
Rated input current (A)	57
Rated output	150V/200A
Output current (A)	40-200
No-load voltage (V)	380
Rated duty cycle 60(%) (40°C 10min)	200A
Rated duty cycle 100(%) (40°C 10min)	200A
Efficiency(%)	80
Protection class	IP21
Insulation class	F
Method of arc start	Non-contact
Net weight (Kg)	59
